Hall Effect Magnetic Switches
LinearRapid TriggerSmooth
Our Magnetic Switches, empowered by Hall Effect sensors, grant users effortless control over key actuation within a remarkable 0.1mm to 3.8mm range. Enjoy the freedom of on-the-fly customization, with up to 20 precision levels at your fingertips. And to elevate the experience further, these linear switches arrive expertly pre-lubricated, ensuring an unprecedented level of smoothness in every keystroke, all designed with your utmost satisfaction in mind.
| FORM FACTOR | 65% (Number of Keys 68) |
|---|---|
| LAYOUT | ANSI (US) Layout |
| KEY SWITCHES | Hall Effect Magnetic Switches Hot swappable Yuki Edition By Gateron |
| BACKLIGHT | RGB - 16 Modes of Preset Lighting Effect |
| CONNECTIVITY | Detachable Wired USB 2.0 (USB-C to A) |
| FRAME | CNC Aluminum |
| DAMPERING | PCBA Silicone, Bottom Case Silicon |
| KEYCAP | 1.5mm Thick Dye-sub PBT OEM Profile |
| MOUNTING PLATE | Anodize Aluminum |
| STABILIZER | 1x PCB Mounted with Screw-in Stabilizer (Spacebar 6.25u) 3x Plate Mounted Stabilizer (Shift, Back Space, Enter 2u) |
| POLLING RATE | 1000 Hz |
| OS COMPATIBILITY | Windows® 11, 10 |
| CABLE | 1.8M Braided USB |
| WEIGHT | 1050g ( KEYBOARD ONLY) |
Curious about how Rapid Trigger operates?
Well, it's like having a ninja for your keyboard!
Rapid Trigger works by intuitively activating your key as soon as you want to press it and deactivating it the moment you release. It eliminates any delay caused by the physical motion of the switch, all by cleverly adjusting the key's activation based on how far you press it, not some fixed point in the travel.
And here's the fun part: you can go wild with rapid key presses, even in mid-motion, without waiting for a rigid reset or actuation point.
Initial Force
30g
Actuation Range
0.1 - 3.8mm
Type
Linear
End Force
50g
Total Travel
4mm
Key Life
100M
Features Summary
Magnetic Switch
Hall Effect Technology
Rapid Trigger
Rapid Trigger is Always On
Adjust Sensitivity
20 Levels
0.1mm - 3.8mm
PBT Keycaps
1.5mm Walls
<1ms Latency
Ultra Fast Input
Factory Prelubed
Prelubed Switches and Stabilizers
Rgb Lighting
16 Modes of Preset Light Effects
Onboard Memory
Save Your Settings to Your Keyboard
Heavy Build
1050g Keyboard Weight
Nano Coated PCB
IP54 Rating for enhanced water resistance
CNC Aluminum Frame
Ultra Bright RGB Lighting
Premium PBT Keycaps
5-Sided Dye Sub PBT KeycapsDesigned by Yuki Aim
- Extra Thick 1.5mm walls for MAXIMUM DURABILITY
- OEM Profile
BONUS INCLUDED:5 Collectible Yuki Chibi Keycaps - R4 Profile

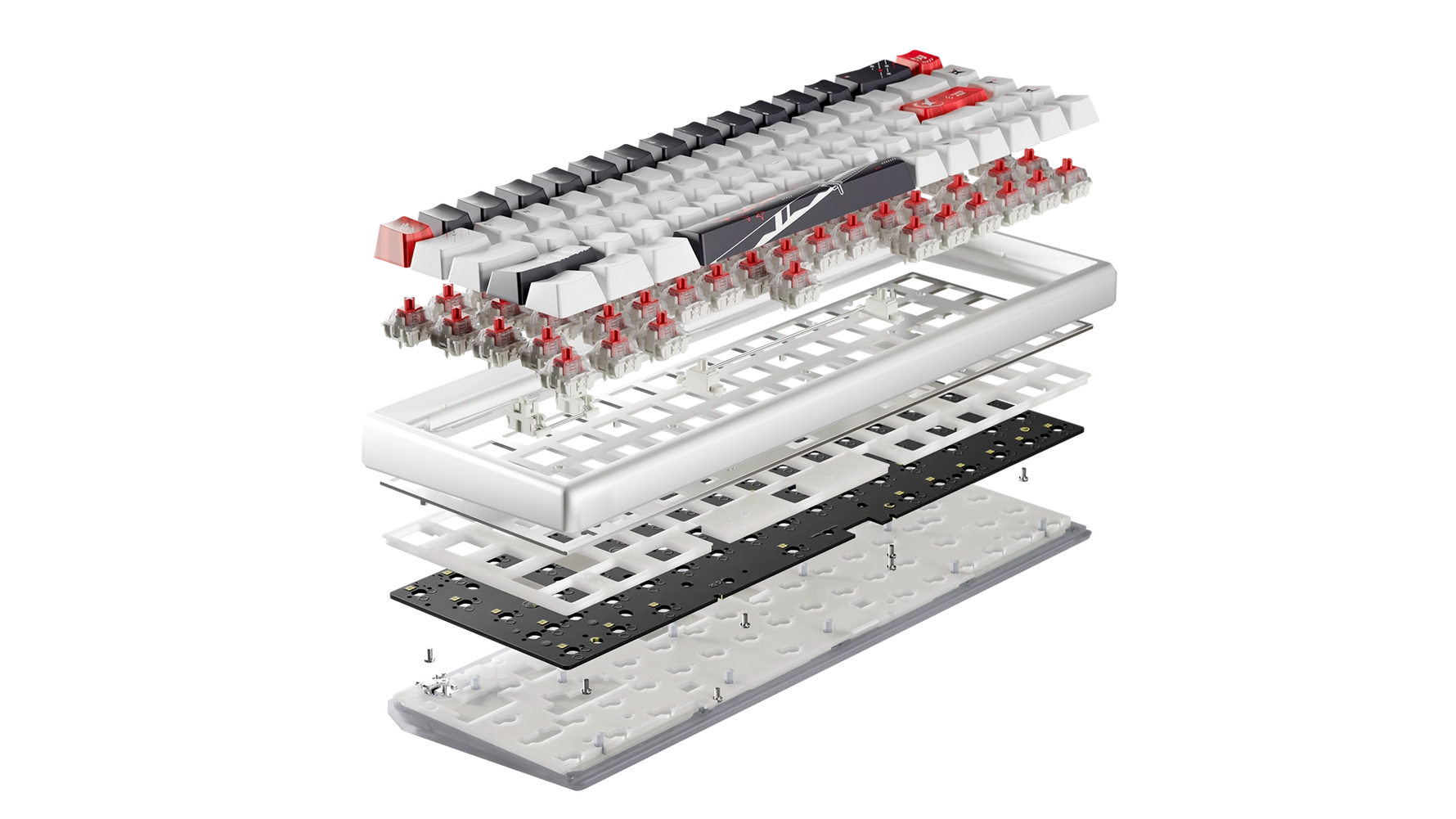

- PBT Keycaps (5 Side Dye-Sub OEM)
- Magnetic Switches
- CNC Aluminum Frame
- Anodized Switch Plate
- Dampening Silicone
- Hall Sensor PCB
- Weighted Dampening Silicone
- Translucent PC Case
Technical Specifications
| FORM FACTOR | 65% (Number of Keys 68) |
|---|---|
| LAYOUT | ANSI (US) Layout |
| KEY SWITCHES | Hall Effect Magnetic Switches Hot swappable Yuki Edition By Gateron |
| BACKLIGHT | RGB - 16 Modes of Preset Lighting Effect |
| CONNECTIVITY | Detachable Wired USB 2.0 (USB-C to A) |
| FRAME | CNC Aluminum |
| DAMPERING | PCBA Silicone, Bottom Case Silicon |
| KEYCAP | 1.5mm Thick Dye-sub PBT OEM Profile |
| MOUNTING PLATE | Anodize Aluminum |
| STABILIZER | 1x PCB Mounted with Screw-in Stabilizer (Spacebar 6.25u) 3x Plate Mounted Stabilizer (Shift, Back Space, Enter 2u) |
| POLLING RATE | 1000 Hz |
| OS COMPATIBILITY | Windows® 11, 10 |
| CABLE | 1.8M Braided USB |
| WEIGHT | 1050g ( KEYBOARD ONLY) |
