Unionwell Polar PRO+ Magnetic Switches - 10pcs

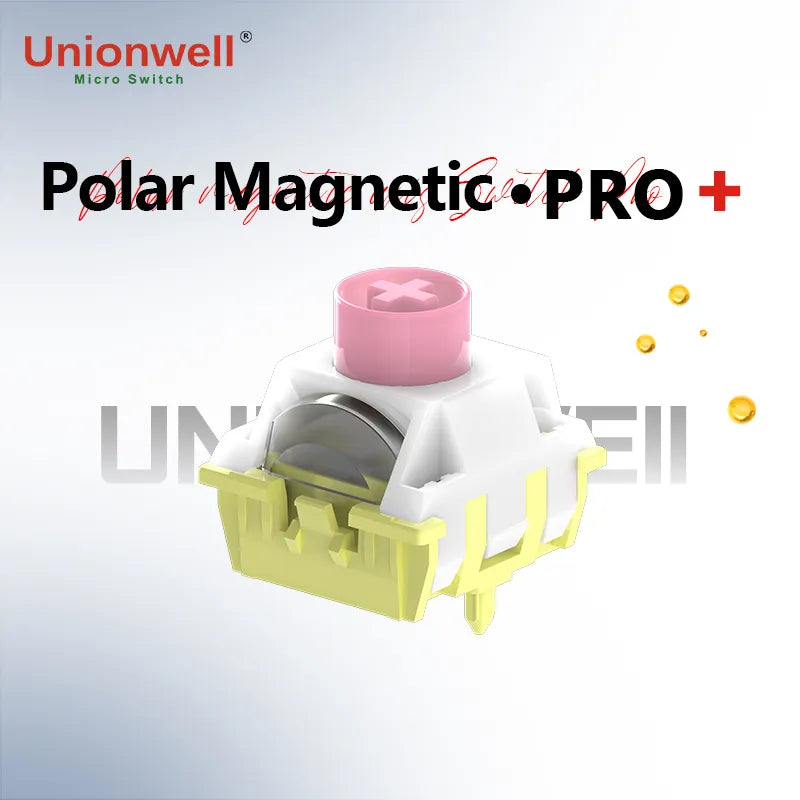

Unionwell Polar PRO+ Magnetic Switches
FEATURES:
• Initial Force: 35士5gf
• Operation Force: 90士15gs
• Total Travel: 3.5±0.2mm
• Pre-Lubed: Yes
• Spring: 21mm
• Typing Style: Linear
• Lifetime: Over 100 million keystrokes
COMPATIBILITY:
- ARC 60
- ARC 65
- POLAR 65+
- POLAR 75+
- Wooting 60HE+
- Wooting 80HE
- Venom 60HE
- and more...
Magnetic Keyboard Compatibility: This magnetic switches N-pole faces down to the PCB board; any keyboard model featuring downward-facing N-pole magnetic switches is compatible with this switch. Please check your keyboard before choosing this item.
**NOT COMPATIBLE with any POLAR 65/65 Pro/75 Pro keyboard models**

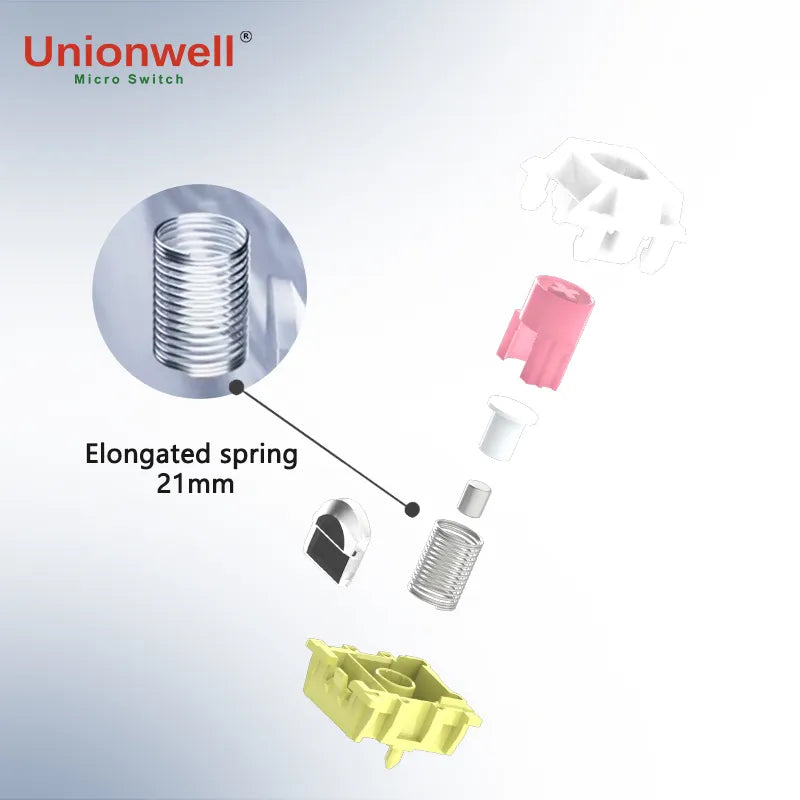

Polar Magnetic switch PRO+ Exploded View
New-generation Polar Magnetic switch PRO+
Anti-offset stabilization structure for the switch
To ensure that every trigger is more precise and reliable when youoperate the Ultra Magnetic Switch PRO+, we have innovativelydesigned the "Dual-body Suspended Structure" switch system,which includes 3 core highlights:
#1 Dual-module idependent
The body is divided into two intelligently cooperating modules:-
- Fingertip contact area - Movable module
- Magnetic induction area Suspended module
The two modules are flexibly connected via a patented"ball-and-socket joint", allowing them to return to their originaposition smoothly like the base of a roly-poly toy.
#2 Spring buffer protection
The built-in high-precision extended spring system provides
The built-in high-precision extended spring system provides
three guarantees:
- Ensures rapid key rebound
- lsolates external pressure interference
- Maintains the optimal working distanceof the magnet.
#3 Intelligent pressure transmission system
State of positive vertical pressing
State of positive vertical pressing
Vertical press - Both modules are pressed down synchronouslyto trigger signals precisely.
State of lateral offset pressure
When pressed laterally- The movable module automaticallyadjusts its deflection angle via the ball-and-socket joint, while thesuspended module remains vertically stable at all times toprevent magnetic
When pressed laterally- The movable module automaticallyadjusts its deflection angle via the ball-and-socket joint, while thesuspended module remains vertically stable at all times toprevent magnetic
Polar Magenetic Swich PRO+ Technical Advantages
- Ensures the accuracy of each diagonal press (lateral offset pressure)during intense operations
- Maintains consistent triggering even with long-term andhigh-frequency use
- Effectively resists the risk of false triggers caused by externalvibrations
This innovation enables the magnetic switch to break through thelimitations of traditional structures. While retaining the mechanicalfeel, it ensures signal accuracy, bringing you a purerhuman-computer interaction experience.

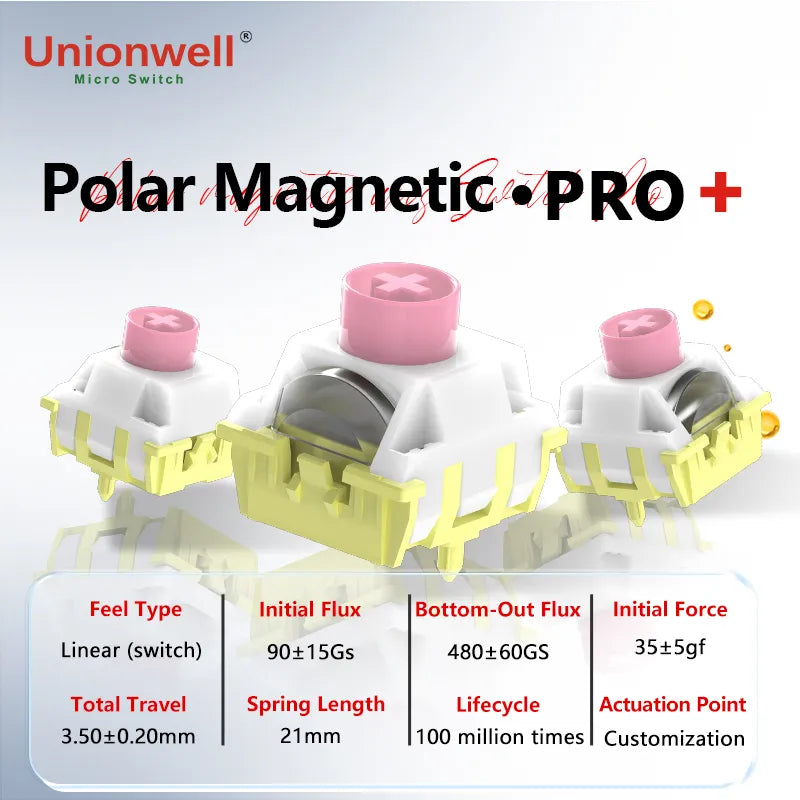

Polar Magnetic switch PRO+ Parameters
Typing Style
Linear
Initial magnetic flux(PCB: 1.6mm)
90±15GS
Bottom-out magnetic flux(PcB: 1.6mm)
480±60GS
Initial Force
3.50±0.20mm
Total travel
21mm
Spring length
90±15GS
Lifetime
Lifetime 100,000,000 Cycles(Min)
Actuation travel
Freely setting
